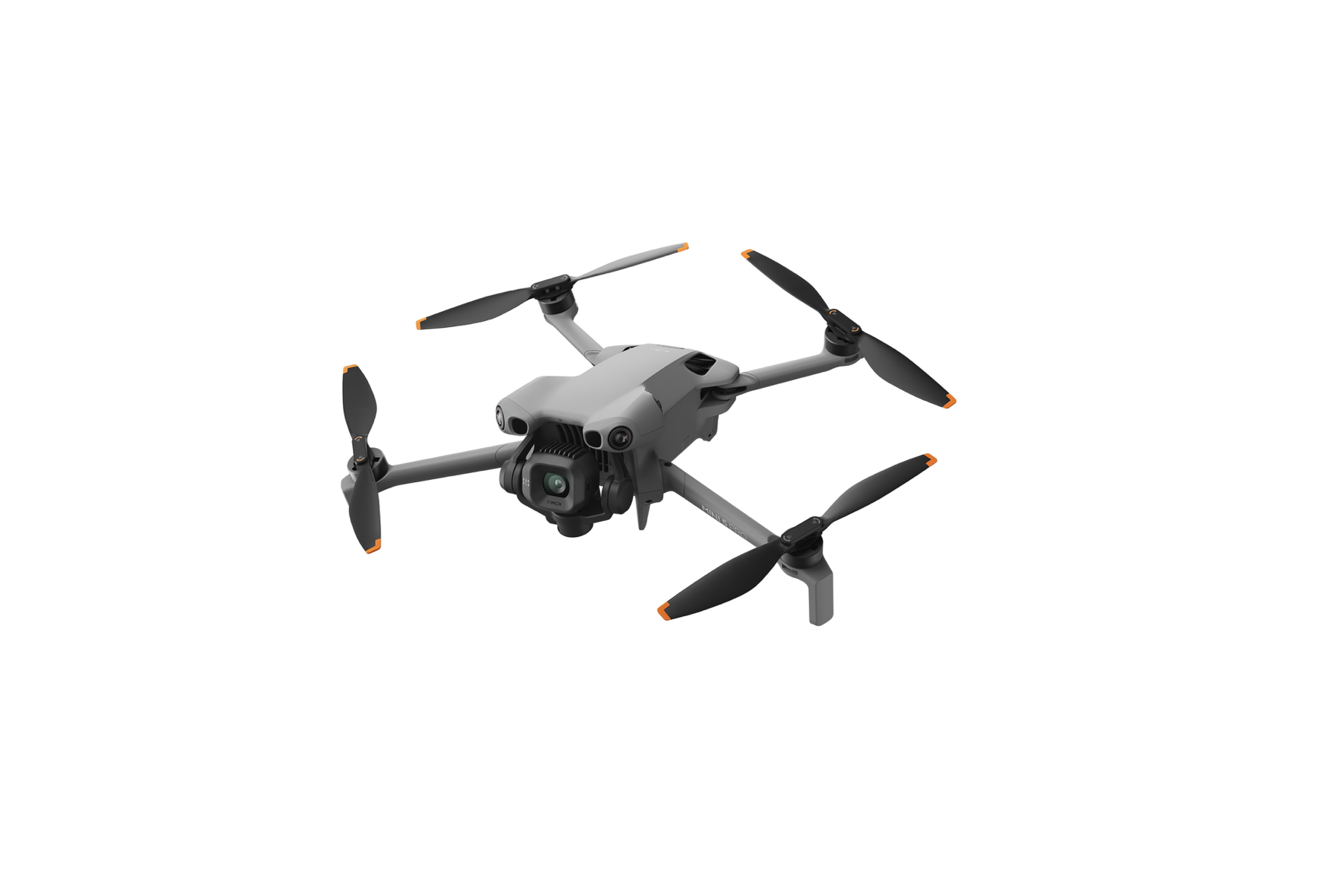

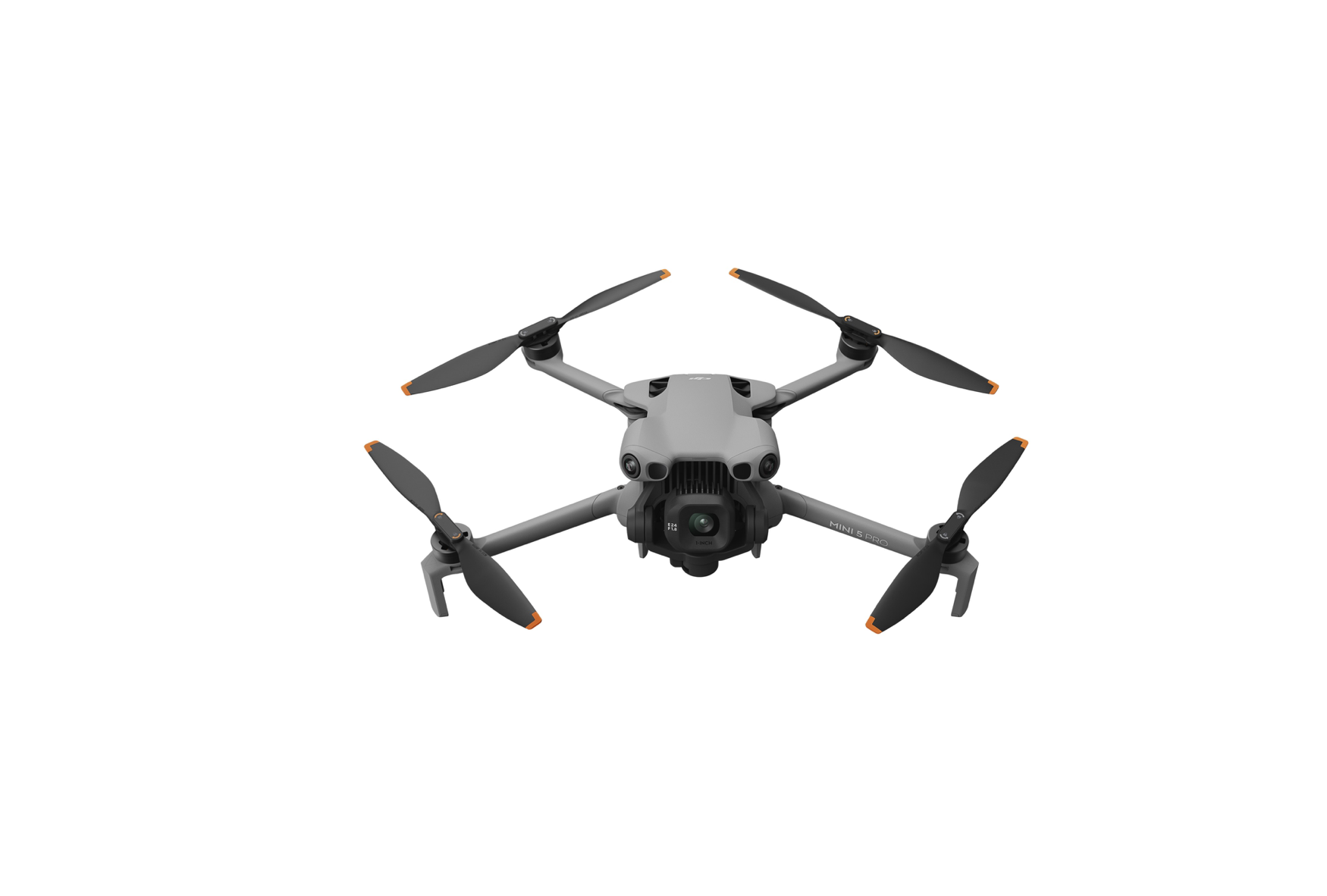

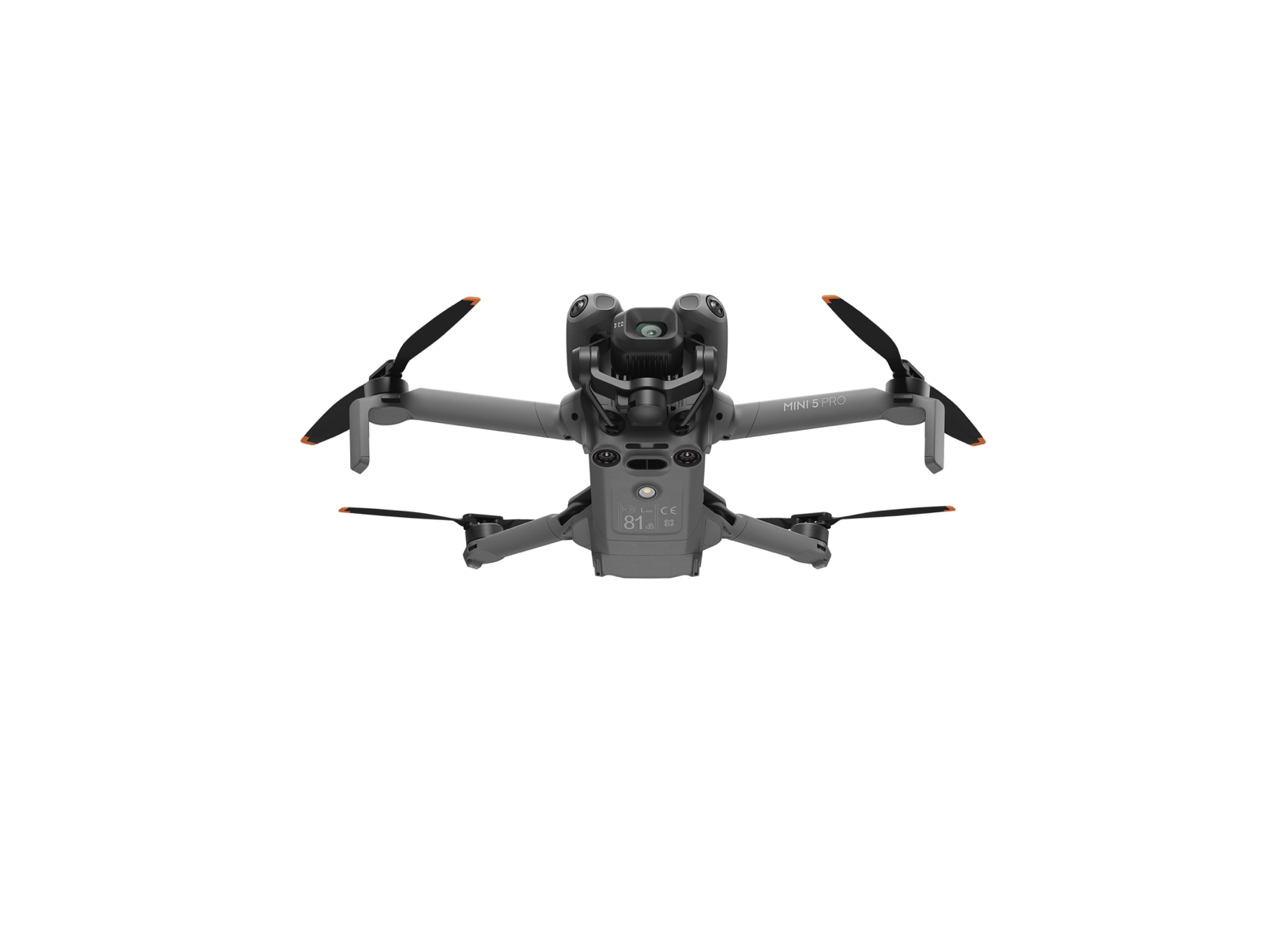

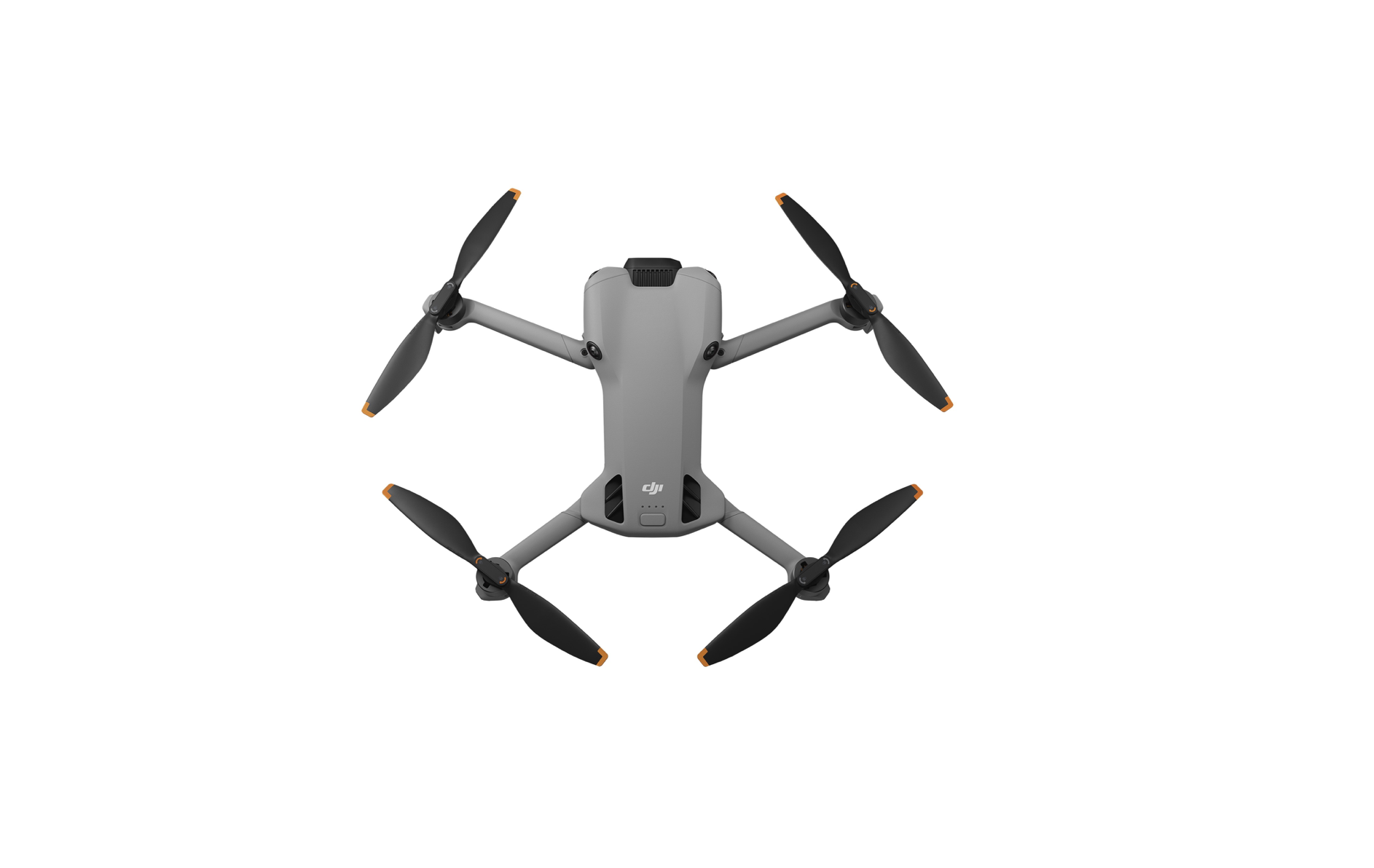

DJI Mini 5 Pro

DJI Mini 5 Pro

Design & Weight

• Take-off weight: approximately 249.9 grams
• Folded size (without propellers): 157 × 95 × 68 mm
• Unfolded size (with propellers): 255 × 181 × 91 mm

Camera & Imaging

• Image sensor: 1-inch CMOS, 50 MP effective pixels
• Lens: 24 mm equivalent focal length, f/1.8 aperture; “Med-Tele” mode (≈48 mm) for closer portraits
• Still image resolutions: 12 MP and full 50 MP; Med-Tele mode digital zoom available
• Video: supporting 4K up to 120 fps; HDR / 10-bit color (D-Log M / HLG)
• ISO ranges: Normal mode up to about 12,800; in D-Log M / HLG lower maximum (≈3200) for colour-critical work
• Colour profiles: Standard, HDR, D-Log M, HLG

Gimbal & Stabilisation

• 3-axis mechanical gimbal
• Roll rotation: up to 225° to allow wide angles and vertical shooting
• “True vertical shooting” support so you can shoot vertical videos/photos without cropping

Obstacle Sensing & Safety

• Omnidirectional vision sensing system including forward-facing LiDAR, fisheye cameras, binocular downward sensors, and infrared sensors underneath
• Nightscape omnidirectional obstacle sensing for improved safety in low light
• Smart “Return to Home” (RTH), non-GNSS RTH (when GPS is weak or unavailable)

Flight Performance & Battery

• Standard battery: “Intelligent Flight Battery” with up to ~36 minutes of flight time under calm conditions
• Optional battery variant (“Battery Plus”): longer flight time (≈52 minutes) where regulations and conditions allow
• Maximum flight distance and speed will vary by condition; approximate wind resistance ~12 m/s
• Max take-off altitude: ~6,000 meters above sea level

Connectivity & Transmission

• Internal storage: ~42 GB
• Video transmission: DJI O4+ system, up to ~20 km range in optimal conditions
• Controller compatibility: Various DJI controllers including RC-N3 and RC2 depending on bundle

Other Features

• Max horizontal speed: ~18 m/s in Sport mode
• Max ascent/descent speeds: vary depending on battery and flight mode
• Operating temperature range: approximately -10 °C to +40 °C
